Hierarchical organization of WebGis services and types of Users (roles)

This paragraph allows you to understand how G3W-SUITE makes it possible to manage the individual WebGis services in a structured and hierarchical way.

In G3W-SUITE it is possible to organize WebGis services on two thematic/functional levels

  • Cartographic MacroGroups

    • Cartographic groups

These organizational levels can be associated with different types of users (Editor 1, Editor2 and Viewer) in order to manage the access/management powers to the individual elements in a granular way.

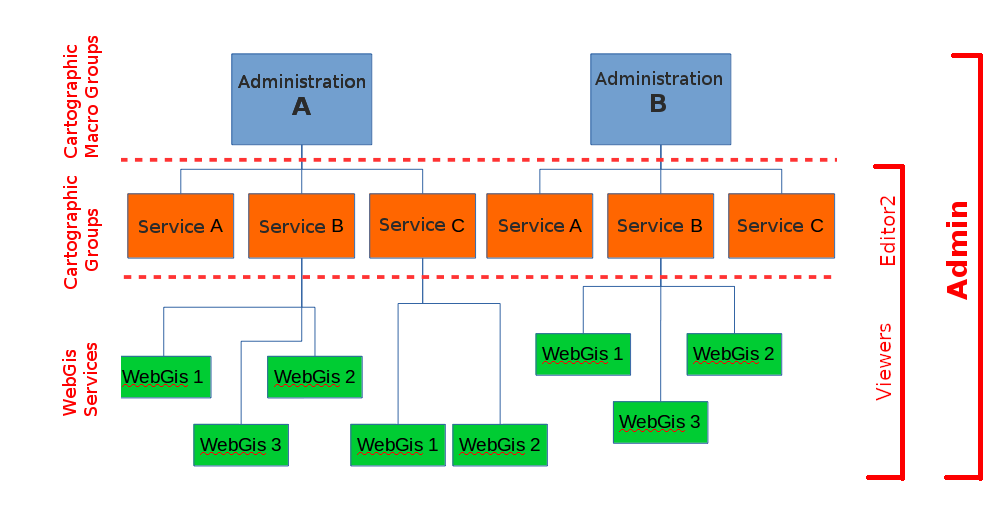

The following image shows an example of the functional use of these organizational levels within a Union of Municipalities.

Access policies and individual functional modules may be associated with each WebGis service.


Types of Users (Roles)

In G3W-SUITE you can create Users and Users Groups and associate them with specific roles:

  • Admin1: user with full powers including Django administration (basic suite configuration)

  • Admin2: user with full powers excluding those of Django administration (basic configuration of the suite)

  • Editor1: administrator of one or more Cartographic MacroGroups for which it will be possible:

    • create users and/or user groups

    • create Cartographic Groups and, if necessary, assign them to an Editor 2 user

    • publish WebGis services and define their access policy

    • activate and configure some functional modules

  • Editor2: administrator of one or more Cartographic Groups for which it will be possible:

    • publish/update WebGis services and define their access policy

    • activate and configure some functional modules

  • Viewer: user with access permission in consultation on WebGis services characterized by authentication. This user can also use individual functional Modules if the relative permissions have been attributed to him

  • Anonymus User: user to be associated with WebGis services and/or functional modules with free access

Hierarchical organization of contents

The following paragraph is dedicated to better understanding the relationships between the different types of users and the different elements of the suite (MacroGroups, Map Groups, WebGis services …).

In G3W-SUITE it is possible to manage Webgis services in a more or less structured way

  • an organizational level (Cartographic Groups):

  • two organizational levels (MacroGroups and Cartographic Groups)

These hierarchical levels can be used for organizational purposes (thematic containers) and/or functional (containers managed by different users/roles).

It is in fact possible to associate the two types of containers (MacroGroups and Cartographic Groups) to users with different roles/powers (Editor1 and Editor2) who will thus become the Administrators of all their contents.

In particular Editor1 users will also be able to create/manage users who can be associated with the Cartographic Groups and WebGis services present in the reference MacroGroup.

The cases relating to one or two organizational levels will be better described below.

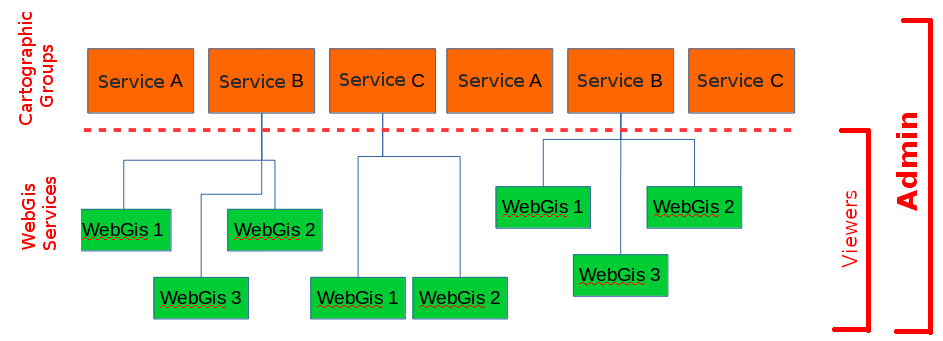

One organization level (absence of MacroGroups)

If MacroGroups are not needed, the Admin user will be the only administrator of the suite and can therefore:

  • create users (individuals and/or groups) of various types

  • create Cartographic Groups

  • publish WebGis services within the individual Cartographic Groups

  • activate some specific modules on individual WebGis services

When creating a cartographic group, the Admin user can define:

  • the eventual user (individual/group) Editor 2 to associate the Group with

  • Viewers users (individuals/groups) who will have access to this container

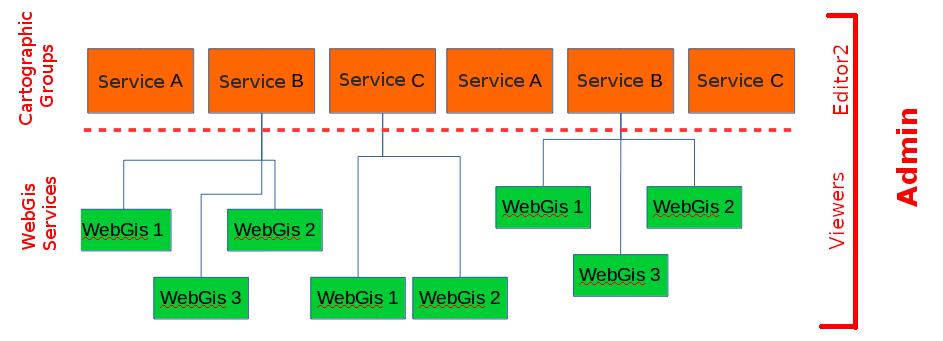

In the event that the Cartographic Group is assigned to Editor 2 (single or group users), they will may autonomously publish/update WebGis services inside in this container.

Editor 2 users will also be able to define the access policies to the published WebGis services, limited to the Viewers users associated with the Cartographic Group by the Admin user.

Even the Admin user can publish WebGis services within a Cartographic Group and, if necessary, associate them with a user (single and/or group) of Editor 2 type.

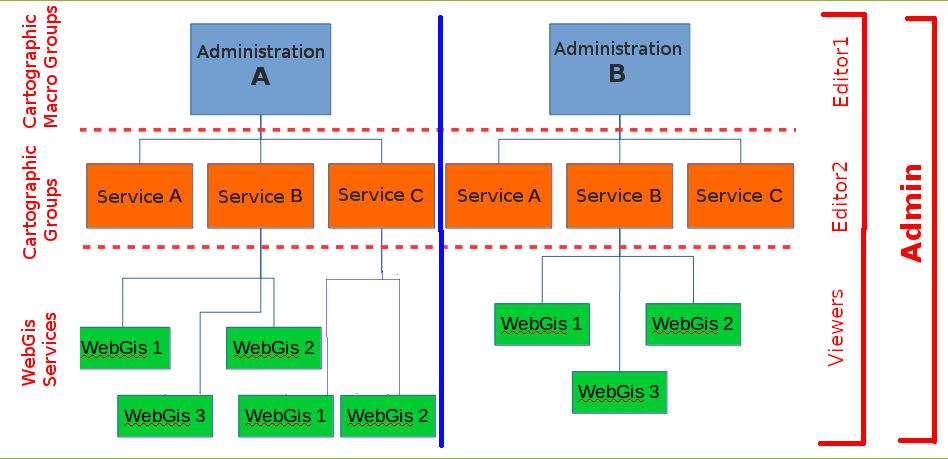

Two organization levels (presence of MacroGroups)

Macrogroups can be created only by Admin users.

Each Macrogroup can be associated with only one Editor1 user.

Each MacroGroup can be considered as a watertight compartment within which the associated Editor 1 user (administrator of the MacroGroup), will be able to create users and user groups that will be made available to define access permissions for content (Groups Maps, WebGis services, functional modules …) of the reference MacroGroup only.

In this way it will be possible to create totally independent entities, the MacroGroups, which will be managed exclusively by the user Editor 1 associated with them.

Clearly the Admin users (1 and 2) will continue to have full powers on all groups present in the system.


As previously specified, Editor 1 user will be able to:

  • create users (single and/or groups) of type Editor2 and Viewer

  • create Cartographic Groups within its Macro Group

  • publish WebGis services within his Cartographic Groups

  • activate specific modules on individual WebGis services

When Editor 1 user creates a Cartographic Group, he can define:

  • the eventual Editor2 user (individual/group) to associate with this Group

  • Viewers users (individuals/groups) who will have access to this container

Summary table of access/administration policies

Below is a summary table of the powers associated with the different roles.
